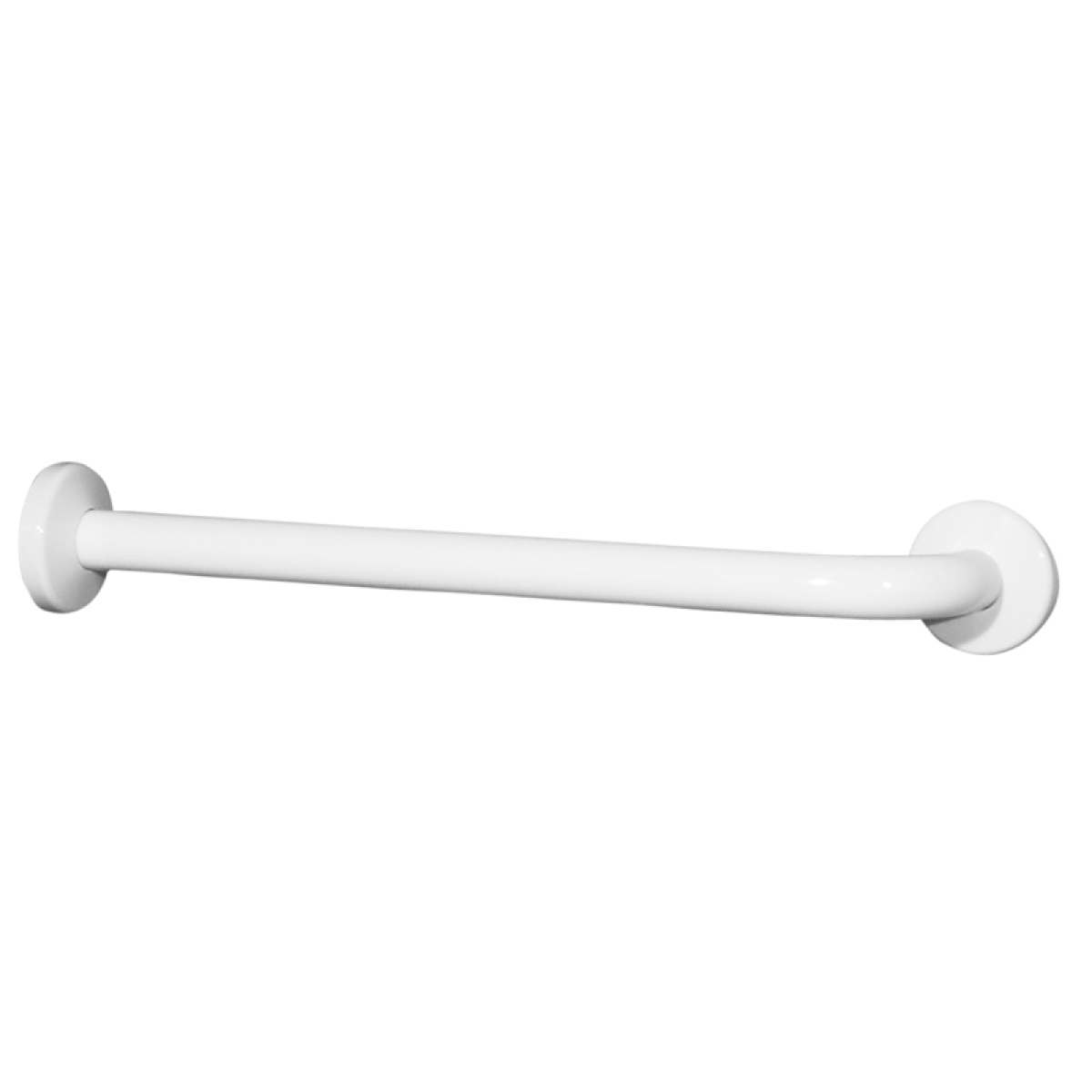

Straight grab bar with 90 degree fixed flange. No maintenance 3mm thick antimicrobial vinyl coating. Concealed stainless steel 11-hole flange plate. Three lengths available. Mount one flange to back wall and one to side wall.Multiple color options.
• 330-pound load capacity exceeds ADA load rating
• Mount to a back wall and a side wall to avoid the corner
• Bar diameter is 1 ¼”
• Anti-microbial, warm and soft to the touch, superior non-slip grip
| 16" Straight Grab Bar With Fixed Flange | |||
|---|---|---|---|
| Code | G40JAS32 | ||

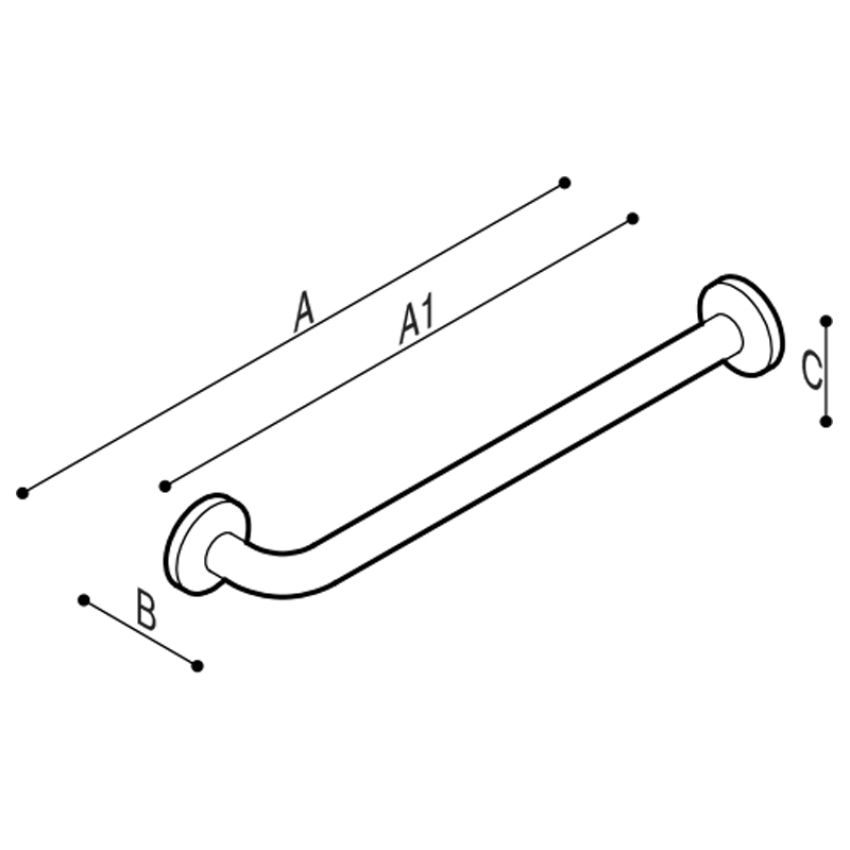

| Dimensions AxBxC (inch.) | 17-3/8x4-15/16x3-1/4 | ||
| Inter-axis dimensions A1 (inch.) | 15-3/4 | ||
| Net Weight (lbs) | 3.53 | ||
| Load capacity (lbs.) | vertical | 331 | |
| horizontal | 88 | ||
